Flexible 10G/1G SFP ports ready for aggregation & redundant topologies
Dual power supply redundancy minimises downtime and boosts system reliability
Hardened casing and design ensures reliable operation in rough environments
Supports static and dynamic routing to reduce latency, control traffic, and improve network scalability and efficiency
Enables real-time performance monitoring, proactive maintenance, and simplified network management
ERPS ensures fast recovery, reliable connectivity, and seamless network restoration
The DIS-310G-24X features four 10G SFP+ and four 1G SFP ports, allowing regional network aggregation and routing at the edge that enhances network performance, efficiency, and management. By combining multiple smaller networks or data streams into a larger, unified entity, it streamlines routing, reduces overhead, and improves overall network resilience.

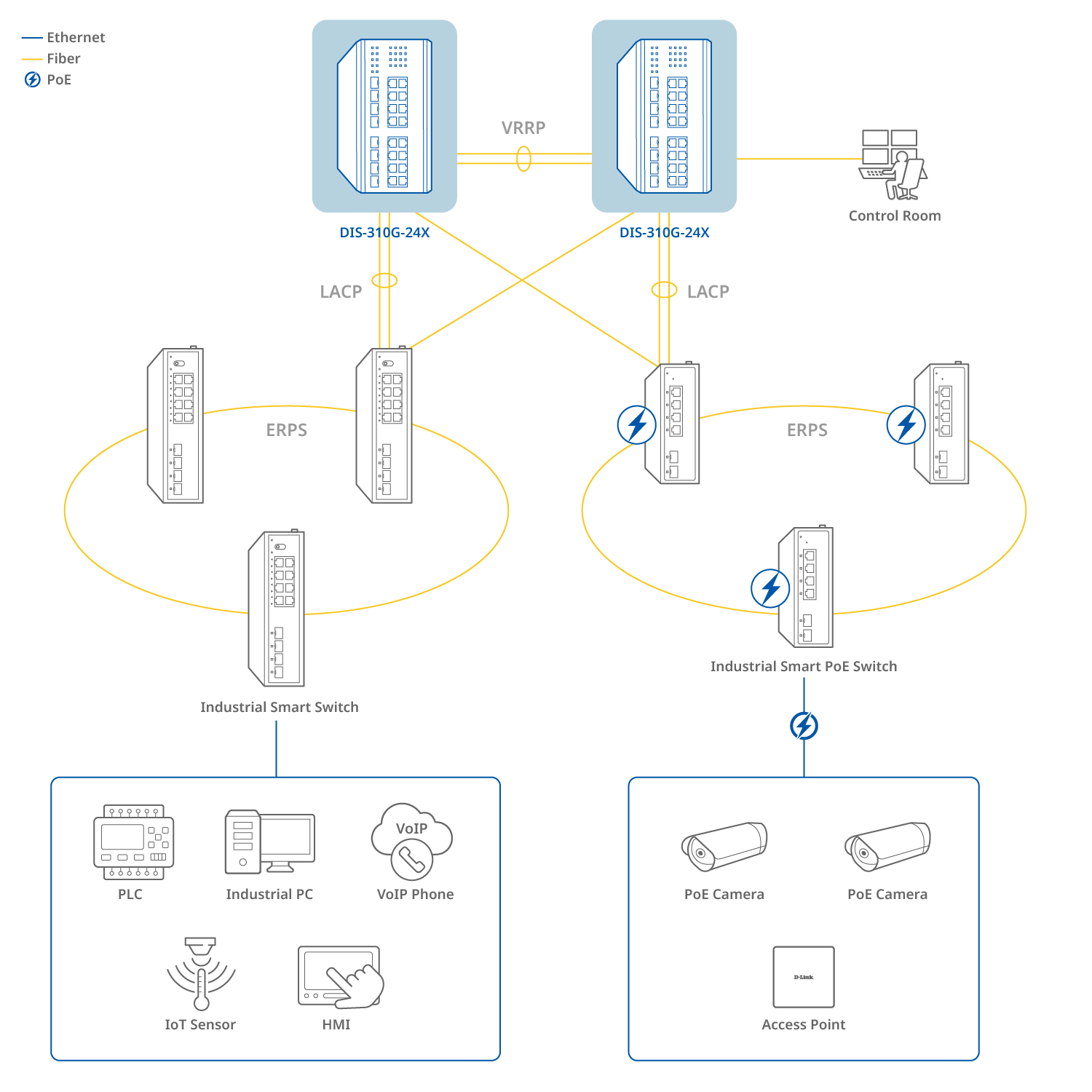

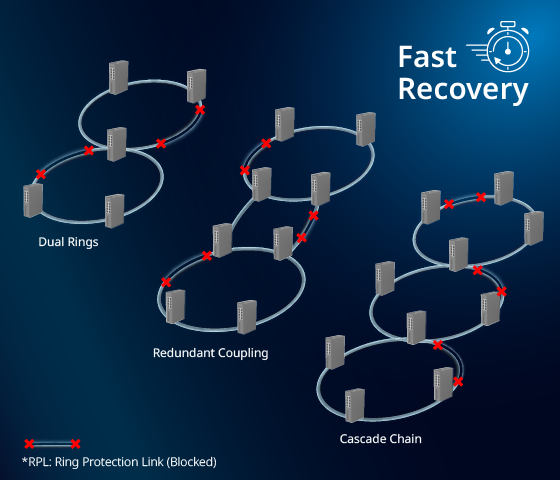

The DIS-310G-24X supports ERPS v1 and v2, enabling multiple ring topologies that prevent network loops while providing redundant paths for continuous connectivity. This ensures high network resilience, fast failover, and easy scalability.
As a standardised protocol, ERPS v1/v2 ensures interoperability with other switch brands, allowing the DIS-310G-24X to integrate seamlessly into existing networks.

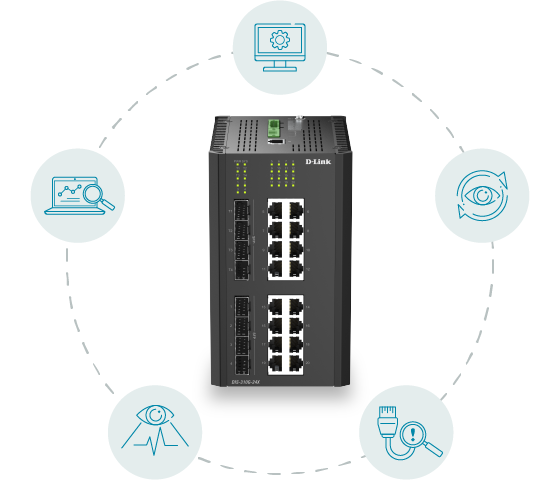

The DIS-310G-24X supports comprehensive OAM functions (Y.1731, IEEE 802.1ag, and IEEE 802.3ah) to continuously monitor physical links and service paths. This enables network administrators and service providers to quickly identify faults, verify connection status, and maintain high service quality.

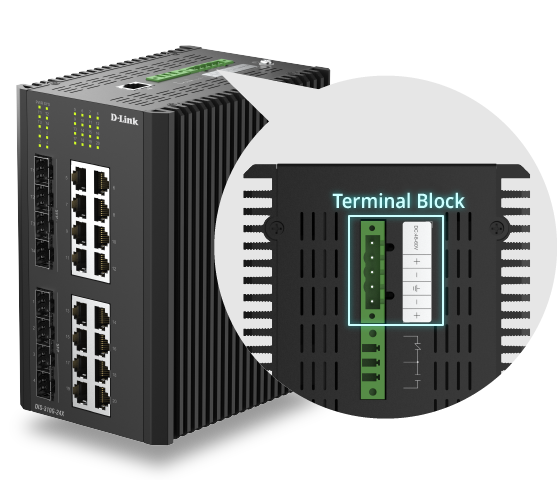

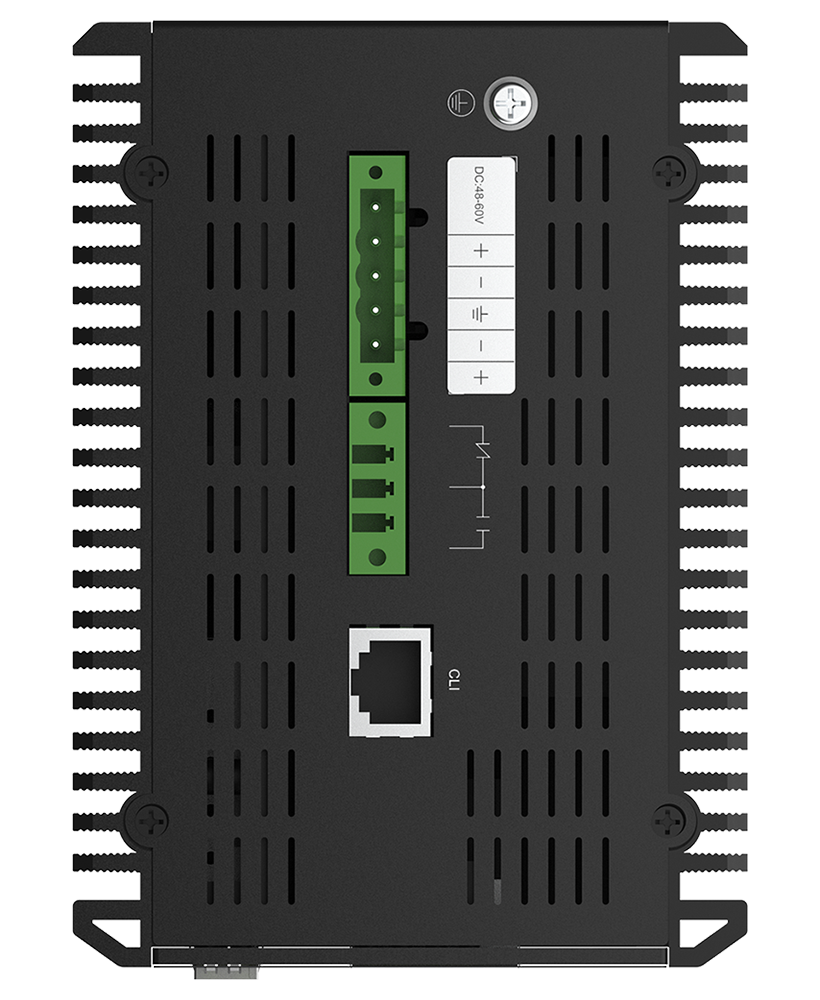

The DIS-310G-24X supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimises shutdown risk and maintains network performance.
Redundant
Power Supply
Overcurrent
Protection
Anti-reverse
Protection
Firm
Connection
The DIS-310G-24X is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6KV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

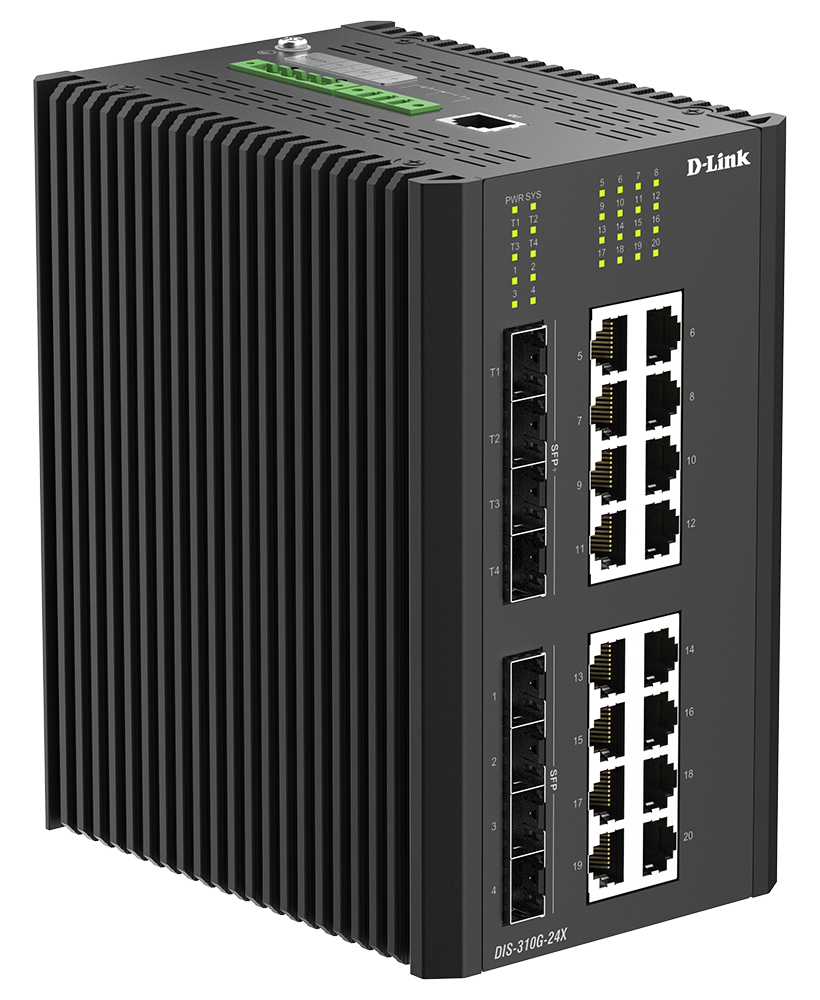

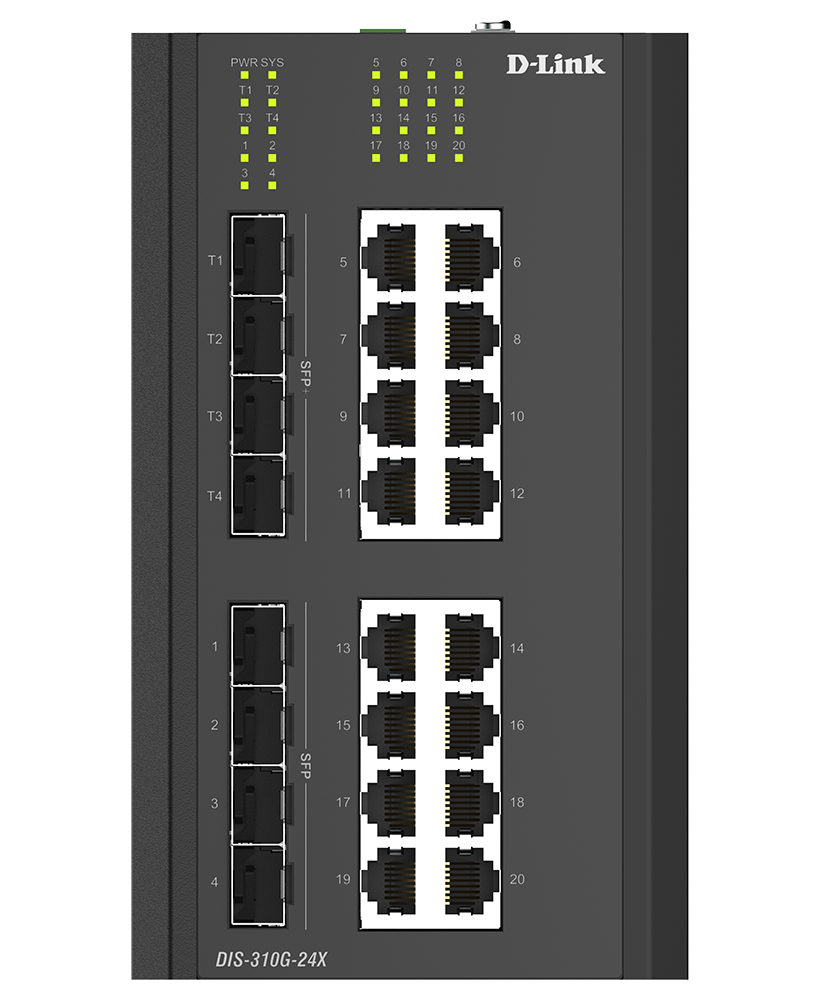

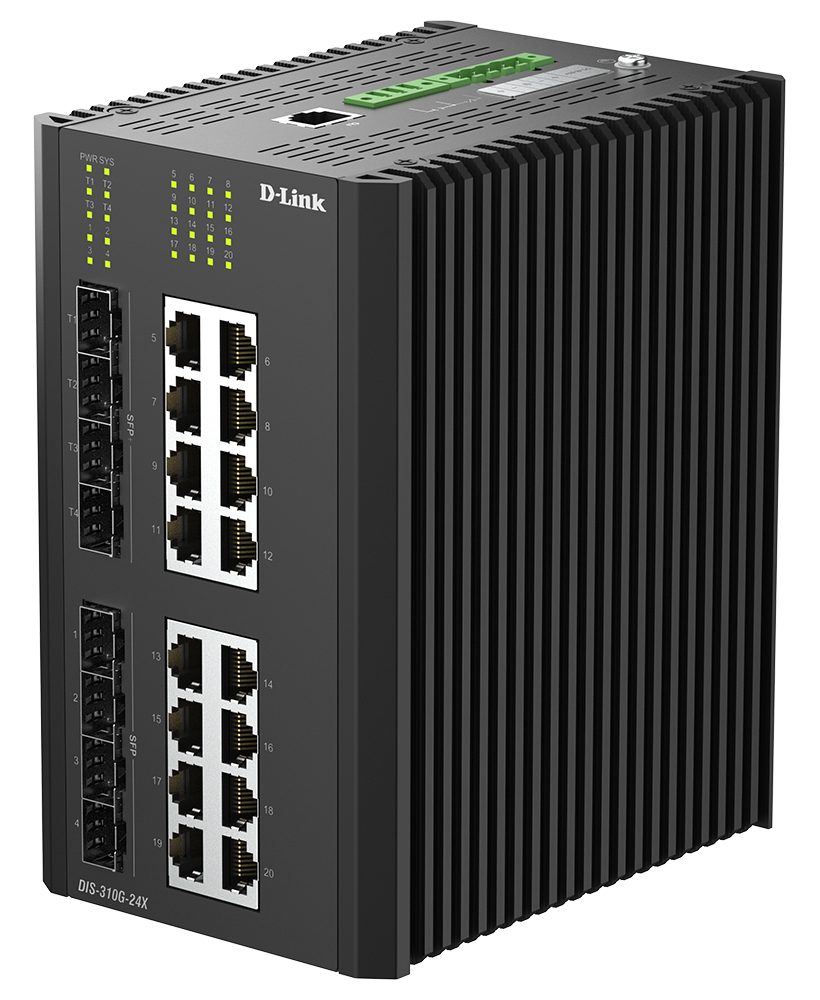

The DIS-310G-24X is an industrial managed switch featuring sixteen 1GE ports, four 1G SFP ports, and four 10G SFP+ uplinks for high-performance aggregation and network backbone connectivity. The SFP interfaces support long-distance transmission, rapid failover, and high-capacity traffic aggregation, while built-in Layer 3 management with static and dynamic routing enables efficient traffic control and scalable network design.
Industrial
Switch
Access
Point

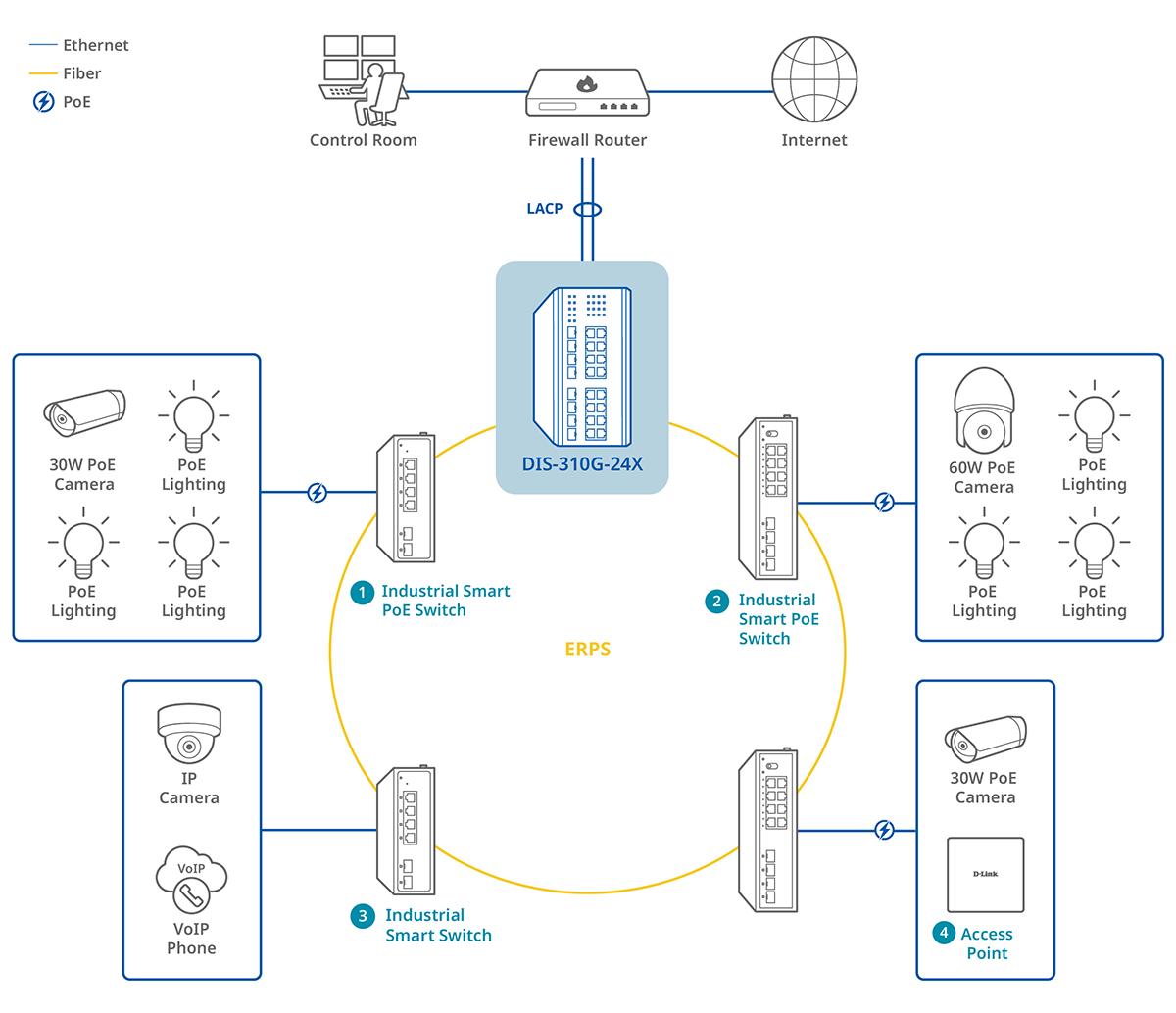

Industrial Automation

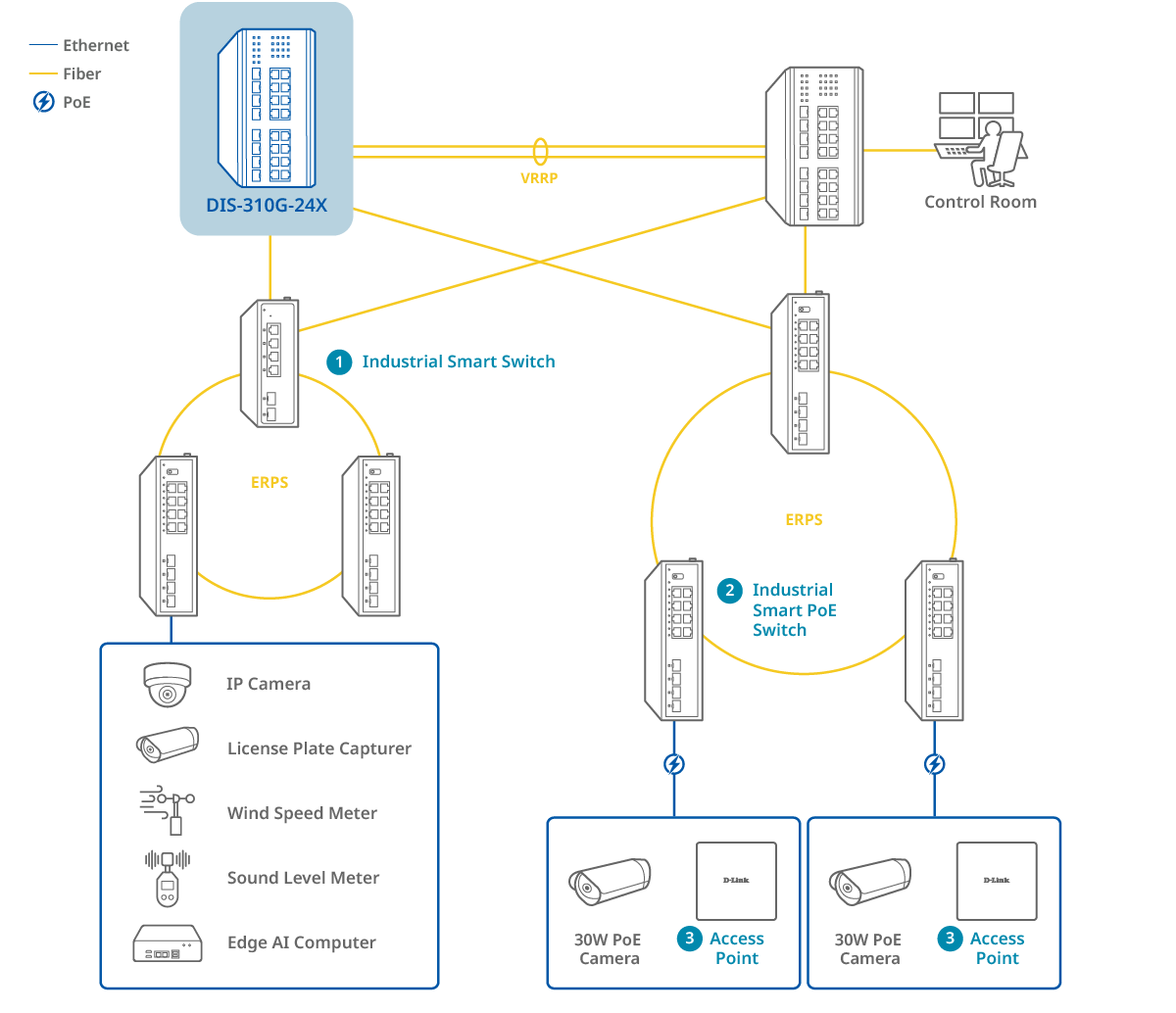

City Surveillance
User benefits :
Learn more :
User benefits :
Learn more :
