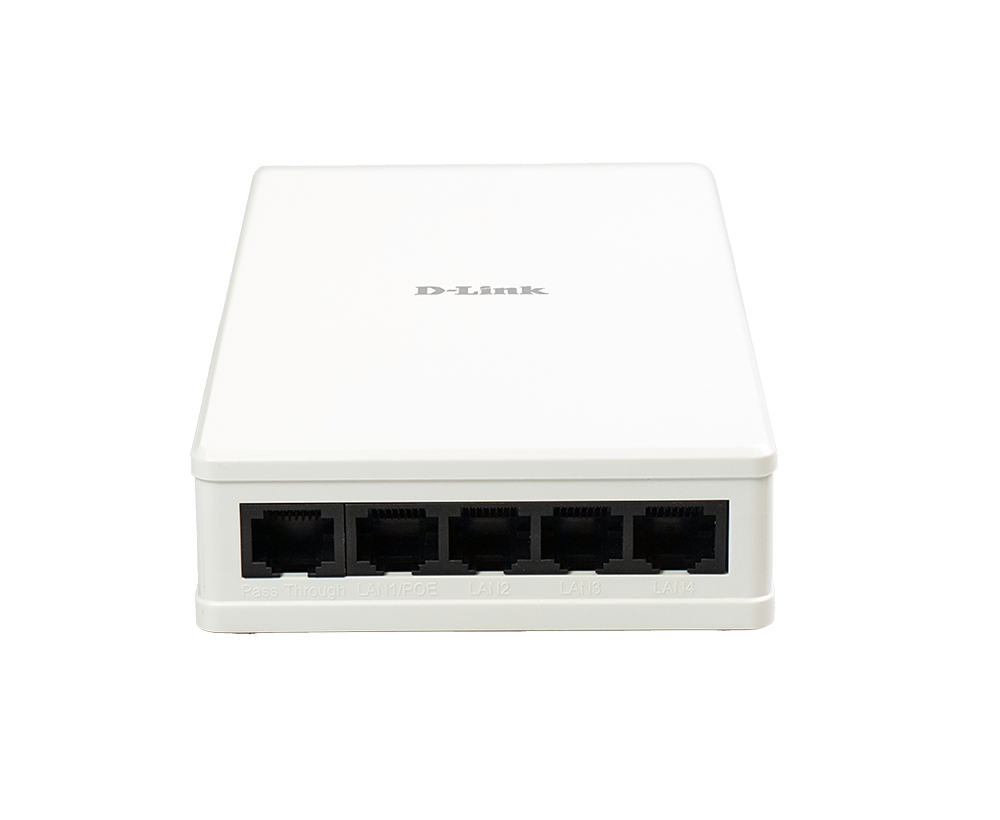

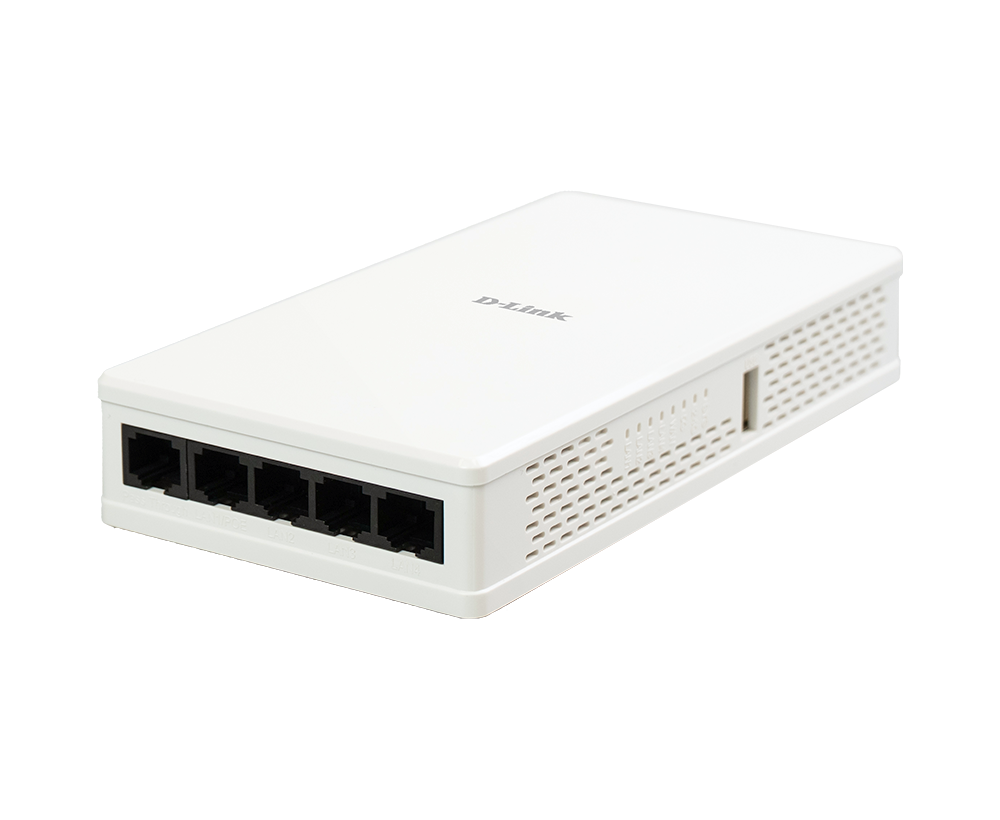

BE3600 Wi-Fi 7 Wall-Plate Access Point
DAP-E3620W
- Product Status (Revision A): Live
- Wi-Fi 7 BE3600 for fast and smooth connectivity
- High-efficiency Wi-Fi for smooth business traffic
- Efficient client handling with 2×2 MIMO
- 2.5GbE uplink eliminates wired bottlenecks
- Gigabit ports for IPTV, PC, IoT, plus PoE pass-through
- 802.3at PoE for clean, cable-free installation
- WPA3 security against credential-based attacks
- Captive portal support for secure guest onboarding
- Advanced control with Nuclias Unity and controller
- Room-ready wall-plate for stable, secure deployments
Where to buy
User Benefits
Wi-Fi 7 Technology
Dual-band Wi-Fi 7 (802.11be), BE3600 class (2×2 + 2×2), delivering lower latency and higher efficiency for multi-user traffic
Powered by PoE
802.3at PoE+ for easy single-cable installation, with a 2.5GbE uplink and PoE Out support for downstream devices
VLAN Per SSID
Each SSID to a dedicated VLAN for traffic segmentation, enabling simple separation of networks through policy-based control
Customisable Guest Access
Per-SSID captive portal support enables branded guest access, promotions, and flexible login workflow
Built for Hospitality / MDU

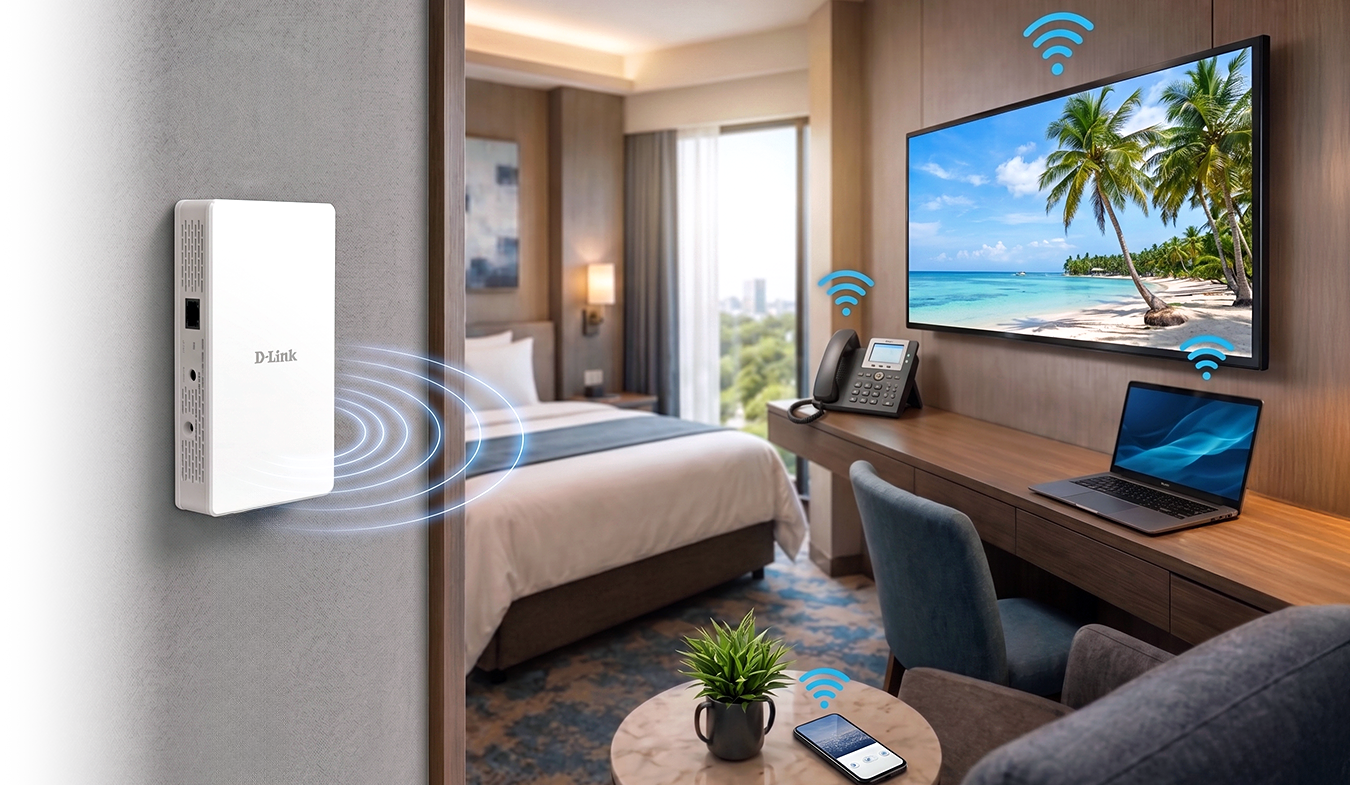

The wall-plate design enables cable-free rooms while delivering both Wi-Fi and wired connectivity for IPTV, PCs, and IP phones
Centralised Management
Centralised management through Nuclias Unity or Nuclias hardware/software controllers (DNH-1000, DNC-5000)
Wi-Fi 7 In-Room Experience, Made Simple
DAP-E3620W is built for hotels, dormitories, and multi-dwelling units, delivering strong, predictable in-room Wi-Fi exactly where users need it—inside every room. Its wall-plate design ensures a clean, secure installation, while single-cable PoE deployment simplifies setup. Ideal for room-by-room coverage strategies, this access point enables operators to deliver consistent guest or resident experiences with less installation effort.
Enterprise-grade Wi-Fi 7 (BE3600) — in Every Room
The DAP-E3620W delivers per-room Wi-Fi 7 for hospitality venues and student dormitories — where high-turnover, multi-device use demands reliable in-room coverage on every visit.
- 160 MHz channels on 5 GHz unlock higher per-device speeds for video calls, 4K streaming, and file transfers.
- Dual-band 2×2 MIMO handles multiple simultaneous devices without degrading speed — ideal for rooms with phones, laptops, and smart TVs.
- Wi-Fi 7 responsiveness reduces latency for work-from-room and study use, keeping every guest and resident connected without interruption.

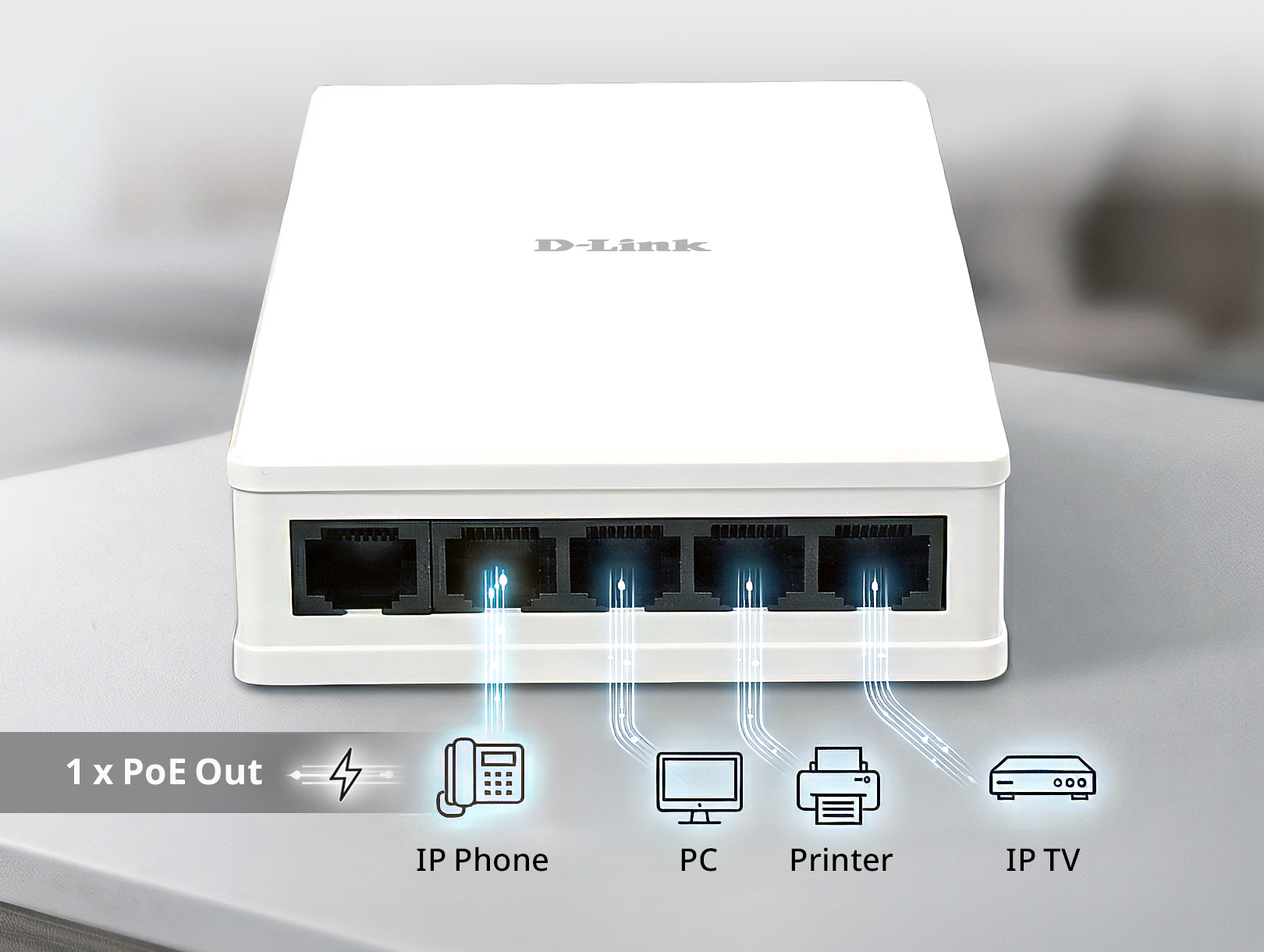

Gigabit Ports and PoE Out to Power In-Room Devices

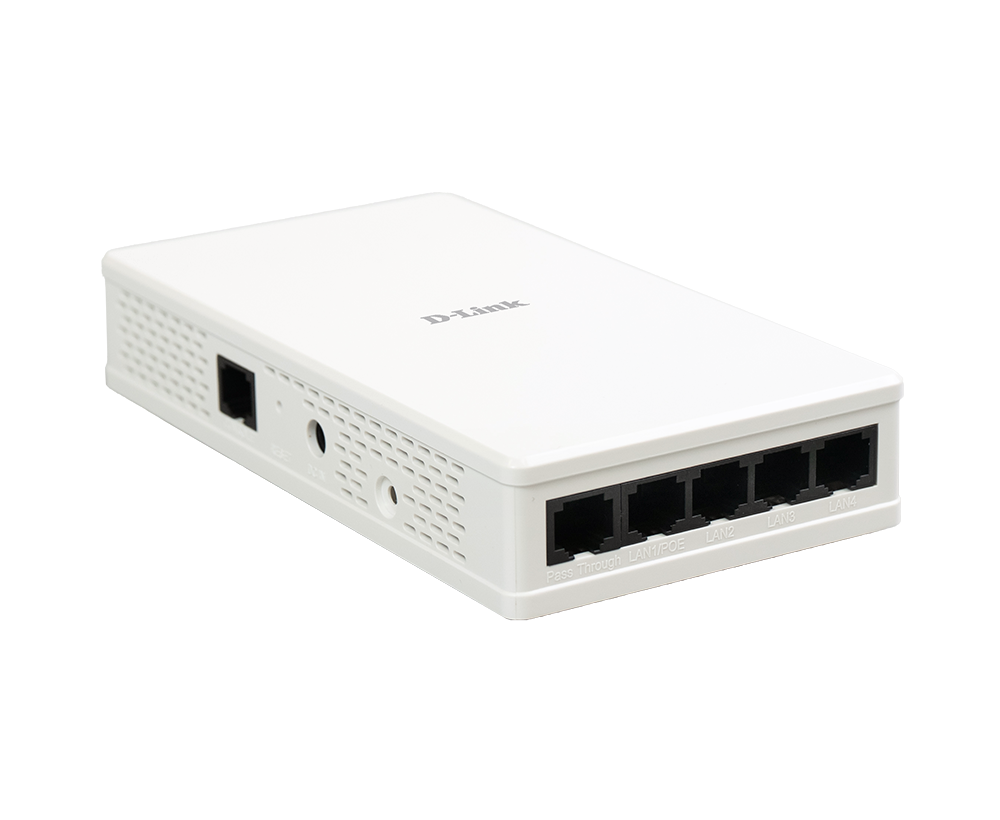

More than a wall-plate AP, DAP‑E3620W also acts as an in-room wired hub. With one uplink and four downlink Gigabit ports, it delivers reliable wired connections for devices like IP phones, IPTV, PCs, and printers. One downlink port supports PoE Out, letting you power an additional endpoint without an extra power adapter—cleaner installs, fewer cables, and easier deployment in the room.

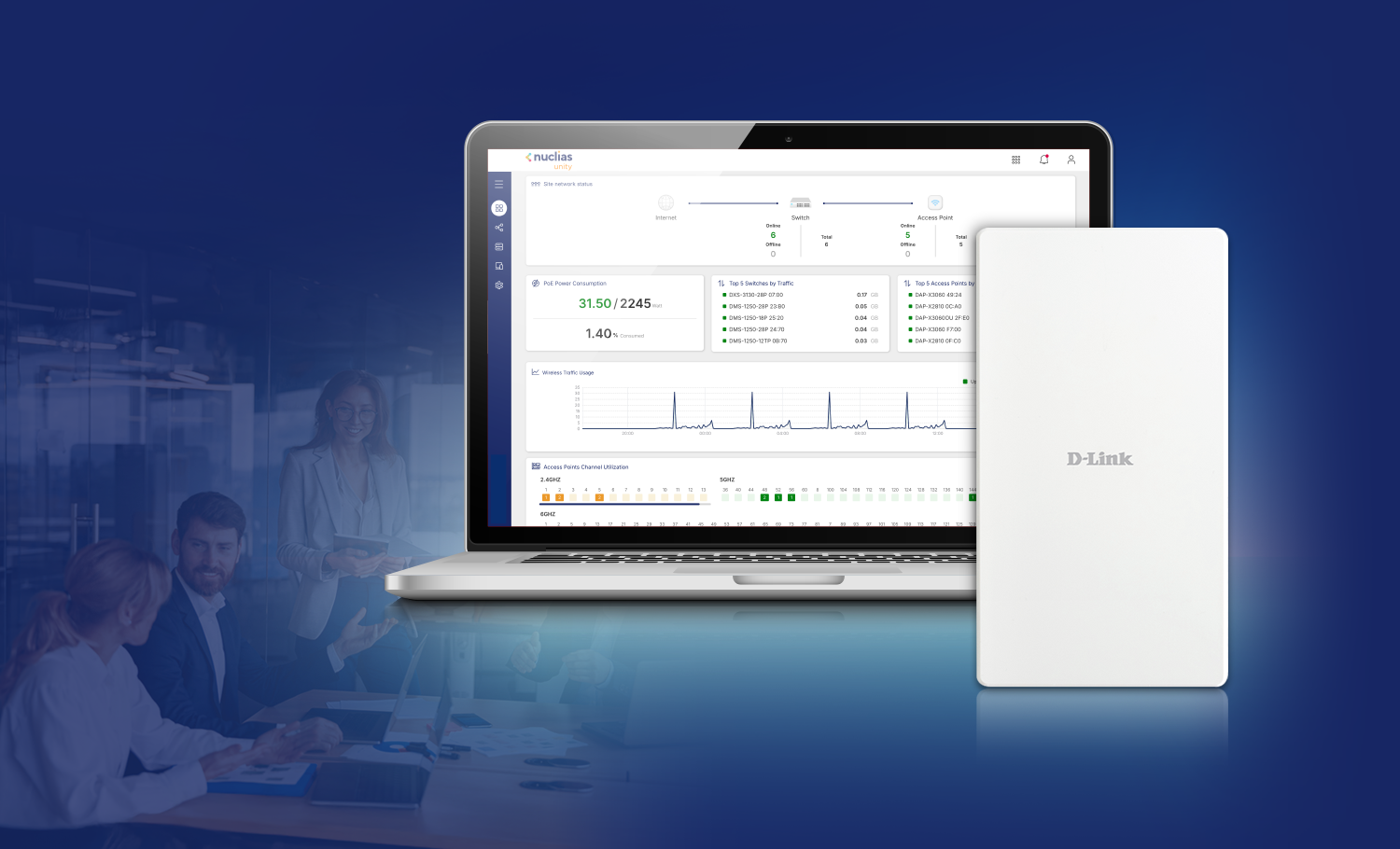

Simplified Centralised Network Management
- The DAP‑E3620W integrates seamlessly with D-Link Nuclias Unity and Nuclias hardware and software controllers, including the DNH-1000 and DNC-5000, to streamline Wi-Fi management for growing business networks.
- Through an intuitive dashboard, IT teams can quickly provision access points, enforce SSID and VLAN policies, deploy firmware updates, and monitor network health across sites. Centralised visibility and configuration simplify deployment, accelerate troubleshooting, and reduce routine maintenance, making it easy to scale from small installations to enterprise environments with consistent performance and security.
Related Products
BE9500 Wi-Fi 7 Ceiling Mount Access Point
DAP-E9560
BE3600 Wi-Fi 7 Ceiling Mount Access Point
DAP-E3620
BE3600 Wi-Fi 7 Outdoor Access Point
DAP-E3620OU
Dormitory (Education)
User benefits :
- Supports multiple devices per room ( laptop/phone / tablet ) without congestion
- Built-in downlink LAN ports for PCs, IPTV, or set-top boxes
- PoE single-cable installation for fast, clean dorm deployment
- SSID/VLAN segmentation to separate student, staff, and guest access
- WPA3 and access control options to protect campus network and user data
Learn more :
- Aggregation Switch : DXS-3130-32S
- Management Platform : Nuclias Unity or DNH-1000
- Unmanaged Switch : DMS-108P
- Outdoor Access Point : DAP-E3620OU
Hotel (Buildings)
User benefits :
- Smooth video calls and streaming with responsive Wi-Fi 7 performance
- Branded guest onboarding via Captive Portal with secure access policies
- Per-room wired connectivity using built-in LAN ports for IPTV/VoIP/PC
- PoE wall-plate design enables quick retrofit and tidy rooms
- Secure guest & staff separation with WPA3 and VLAN-based network design
Learn more :
- Aggregation Switch : DXS-3130-32S
- Management Platform : Nuclias Unity or Nuclias Hyper
- Standard Smart Switch : DMS-1250 Series
- Unmanaged Switch : DMS-108P
- Outdoor Access Point : DAP-E3620OU
High-Rise Community (Buildings)
User benefits :
- Handles everyday multi-device households with stable performance
- In-room wired ports + PoE passthrough for IPTV, VoIP phone, or IoT gateway
- Clean, secure wall-plate installation ideal for MDU deployments
- Resident/guest traffic isolation via multiple SSIDs and VLAN policies
- Enhanced security with WPA3 and access control to protect private networks
Learn more :
- Core Switch : DXS-3630-54S ( Coming Soon )
- Management Platform : Nuclias Unity or Nuclias Hyper
- Aggregation Switch : DXS-3130 Series
- Standard Smart PoE Switch : DMS-1250-18P
- Unmanaged Switch : DMS-1016
Specs
|
Category
|
Wall Plate |
|---|---|
|
Interfaces
|
1 x 2.5-Gigabit Ethernet PoE LAN port for Uplink 4 x Gigabit LAN port (downlink, one PoE out for PD device) |
|
Antenna type
|
2 x 2.4 GHz internal antennas 2 x 5 GHz internal antennas |
|
Antenna gain
|
2.4 GHz: 3 dBi 5 GHz: 3.3 dBi |
|
Maximum Output Power
|
2.4 GHz: 25 dBm 5 GHz: 25 dBm |
|
Data Signal Rate
|
2.4 GHz: Up to 688 Mbps 5 GHz: Up to 2882 Mbps |
|
Indoor/outdoor
|
Indoor |
|
IEEE Standard
|
IEEE 802.11be/ax/ac/n/g/b/a IEEE 802.3u/ab/bz IEEE 802.3at PoE |
|
Security Protocol
|
WPA/WPA2/WPA3™ Personal/Enterprise SSID broadcast disable MAC address access control WEP 64/128-bit Enhanced Open Internal RADIUS server |
|
Network Management
|
Web Nuclias Unity Nuclias hardware and software controller SNMP |
|
Power Supply
|
IEEE 802.3at PoE |
|
Max. Power Consumption
|
16 W, 23.05 W (including PoE output) |
|
Operating Temperature
|
0°C - 40°C (32°F - 104°F) |
|
Storage Temperature
|
-20°C to 65°C (-4°F to 149°F) |
|
Operating Humidity
|
10% to 90% |
|
Storage Humidity
|
5% - 95% |
|
Dimensions
|
160 x 86 x 29 mm |
