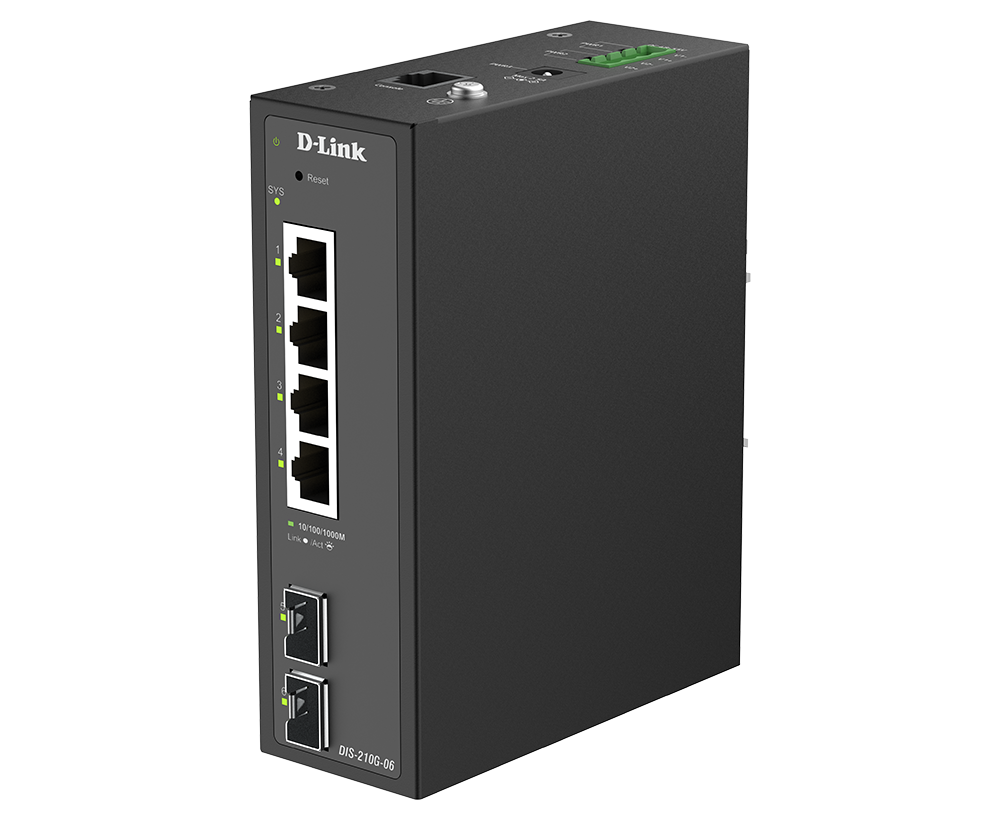

6-Port Industrial Gigabit Smart Managed Switch with 2 SFP
DIS-210G-06
- Dostupnost produktu (Rev. A): Live
- 2 x 1G SFP ports for aggregated throughput
- 4 x Gigabit ports for fast data transmission
- Dual power inputs provide power redundancy
- Wide voltage compatible with various power sources
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- Fanless and IP40-rated design enhances reliability
- Support Ethernet Ring Protection Switching (ERPS)
- Support L2 management and IP static routing
- Proactive OAM by Y.1731, 802.1ag, 802.3ah
Seznam prodejců
Fibre Interface
Offers high performance with low latency and reliable long-distance fibre connectivity
Dual Power Input
Dual power supply redundancy minimises downtime and boosts system reliability
Fanless
Minimizes the risk of component failure and lowers maintenance and downtime costs
Reliable Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Operations Administration and Maintenance (OAM)
Enables real-time performance monitoring, proactive maintenance, and simplified network management
Ethernet Ring Protection Switching (ERPS)
ERPS ensures fast recovery, reliable connectivity, and seamless network restoration
Efficient, Resilient, and Agile
The DIS-210G-06 comes with two 1G SFP ports to extend transmission distances, enabling seamless aggregation of smaller networks into a unified system.
With static routing support, it boosts performance and simplifies management. By streamlining routing and improving overall efficiency, it enhances network resilience, helping IT professionals deliver more reliable, high-quality services.

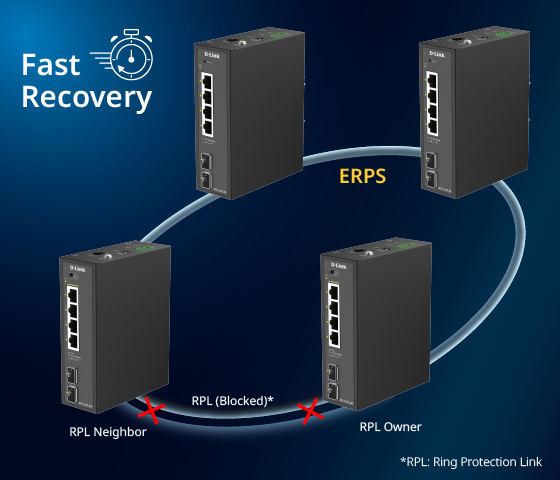

Fast Recovery, Continuous Service
The DIS-210G-06 combines ERPSv1/v2 and Operations, Administration, and Maintenance (OAM) to deliver a highly resilient and easy-to-manage network. ERPS ensures redundant backup paths, preventing loops and providing rapid failover with fault recovery as fast as 50ms. OAM includes a function set (Y.1731, 802.1ag, 802.3ah) that continuously monitors physical connections and virtual circuits, helping network administrators quickly identify issues. Together, these features enhance network reliability, minimise downtime, and maintain a consistent, high-quality service experience.

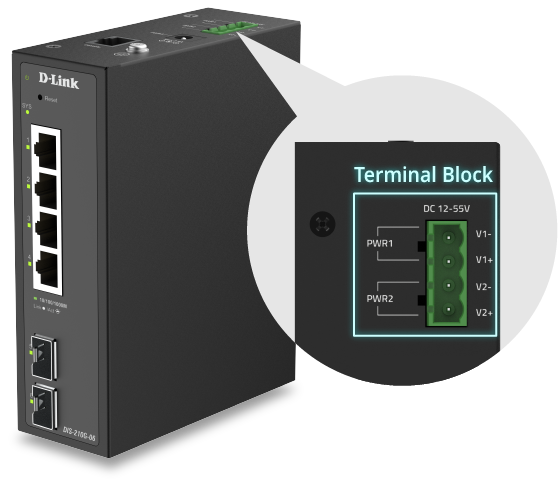

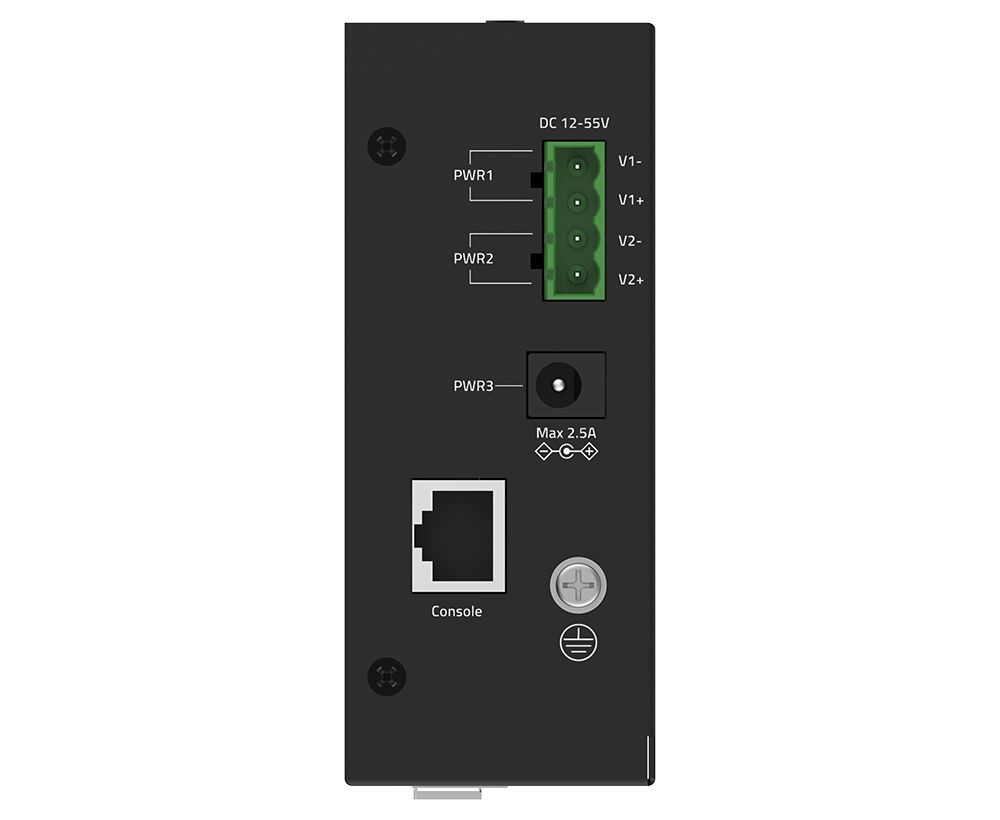

Uninterrupted Power Redundancy
The DIS-210G-06 supports dual power supplies, and each is capable of independently powering the device. The redundancy ensures continuous operation when one power source fails, which minimises shutdown risk and maintains network performance.
Wide
Voltage
Redundancy
Power Supply
Overcurrent
Protection
Anti-reverse
Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-210G-06 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Související produkty

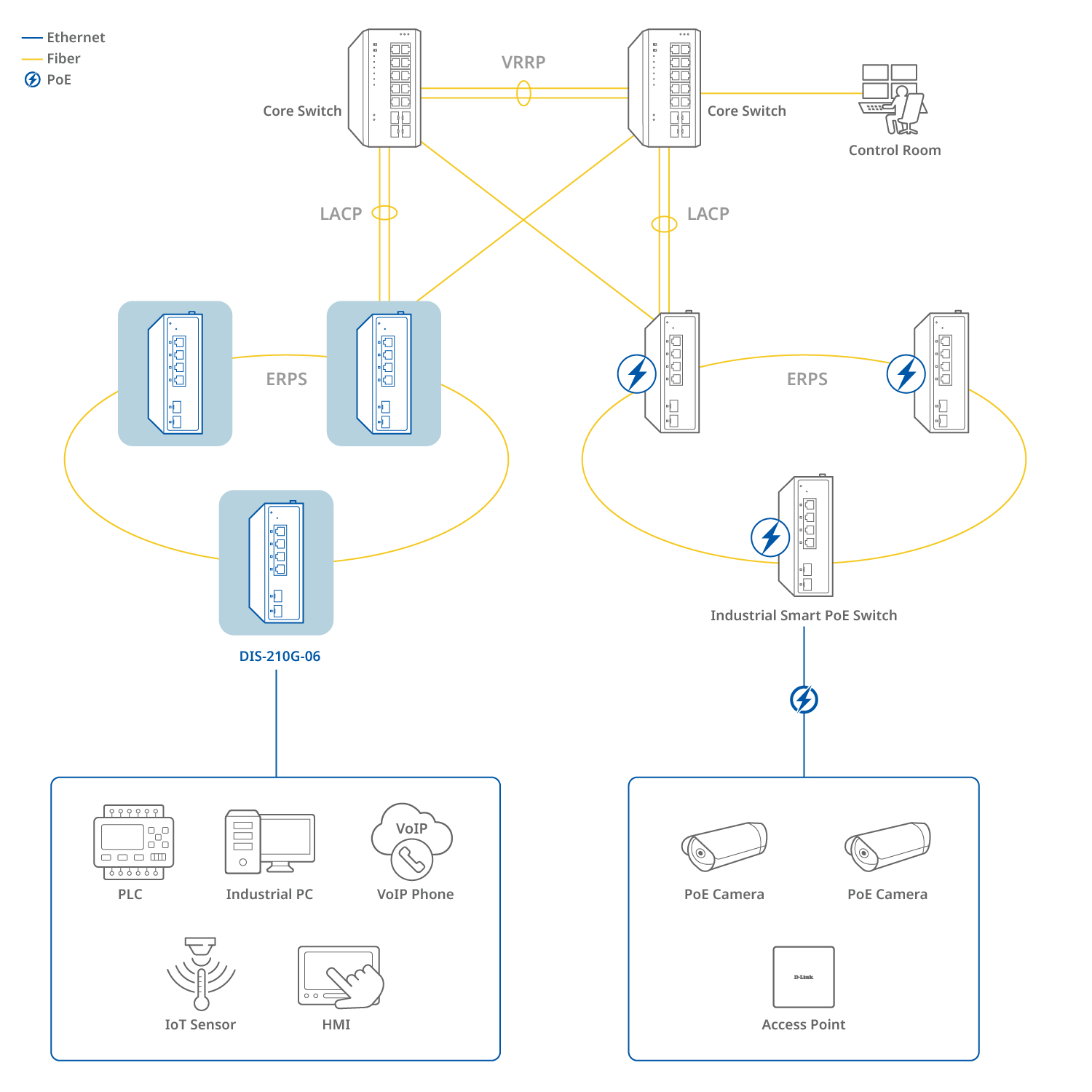

Connection Diagram
The DIS-210G-06 is an industrial smart switch equipped with four 1G ports and two 1G SFP ports for network management and aggregation. The SFP ports support long-distance data transmission, rapid failover redundancy, and throughput aggregation. The DIS-210G-06 supports ERPS and static routing, which reduces latency, enables effective traffic control, and improves network scalability and efficiency.
Core
Switch
Industrial
Switch
Access
Point

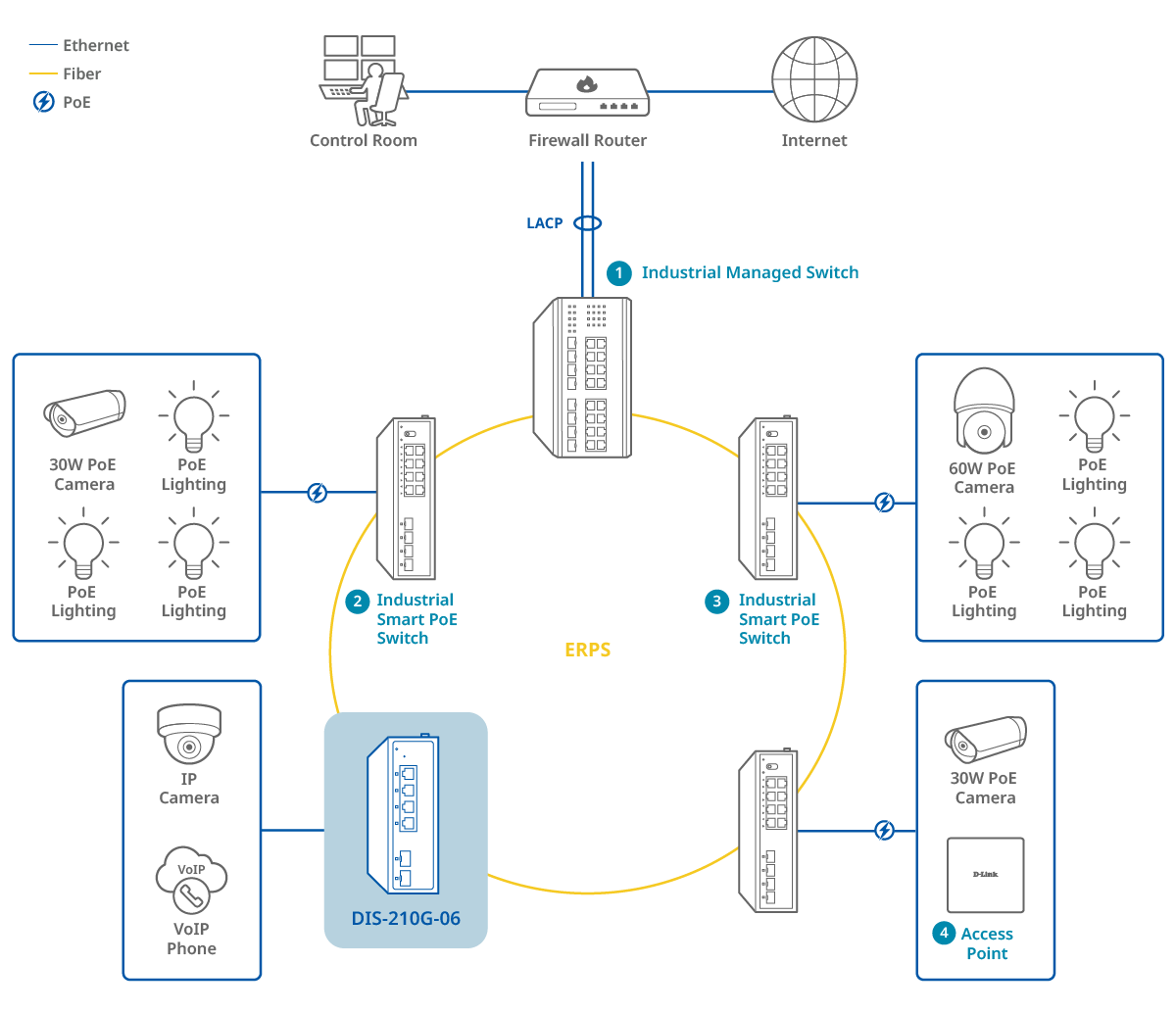

Applications
Industrial Automation
City Surveillance
Malá kancelář (Podnik)
Uživatelské výhody:
- Zajišťuje bezpečný vzdálený přístup s robustní ochranou
- Přívětivé webové rozhraní pro konfiguraci a nastavení
- Snadné rozšiření pokrytí Wi-Fi pomocí několika AP
- Pokročilá Wi-Fi pro hosty pro ochranu hlavní sítě
Další informace:
Malá kancelář (Podnik)
Uživatelské výhody:
- Zajišťuje bezpečný vzdálený přístup s robustní ochranou
- Přívětivé webové rozhraní pro konfiguraci a nastavení
- Snadné rozšiření pokrytí Wi-Fi pomocí několika AP
- Pokročilá Wi-Fi pro hosty pro ochranu hlavní sítě
Další informace:
Technické specifikace produktu
|
Category
|
Smart Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Ingress Protection
|
IP40 |
|
Power Supply Type
|
DC:12~55V Dual input |
|
MAC Address
|
Up to 8K |
|
802.1D STP, 802.1w RSTP, 802.1s MSTP
|
Supported
|
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Port/VLAN Basis GVRP
|
Supported
|
|
802.1X, RADIUS
|
Supported
|
|
LLDP, LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
|
OAM by 802.3ah, 802.1ag, ITU-T Y.1731
|
Supported
|
|
Command Line Interface (CLI)
|
Supported
|
|
Console Port
|
RJ-45 console port |
|
Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění. |
|
